QuickSAT Auto QSA80F Fully Automatic Satellite TV System


  • Fully automatic motorised positioning
  • Setup with the press of a button
  • Receives all UK TV channels across England, Scotland, Wales, Ireland, France and into northern Spain
  • Available with optional Free-to-Air Receiver
Clear selection

Product Description

Touring Satellite system with fast Dish alignment

The QuickSAT QSA80F is a fully automatic satellite antenna with auto skew, just press a button and the flat panel will rise into position and automatically lock onto the satellite very quickly thanks to the built in GPS receiver. Ideal for use whilst away in your Motorhome, Caravan, Horsebox or Boat

Available with one or two LNB outputs.

  • Automatic alignment of your chosen satellite at the press of a button
  • Completely automatic adjustment of elevation, azimuth and skew
  • Perfect alignment and fast searching using built in GPS receiver
  • Buttons for 10 pre-programmed satellites plus 2 user defined satellites.
  • Reception performance comparable to a conventional 80cm dish
  • Wide elevation range for use throughout Europe
  • Low profile when closed
  • All major parts made with aluminium di-casting
  • Die-cast zinc alloy gears with locking mechanism to prevent damage while travelling
  • Waterproof construction with drainage system
  • Gain 36.1dBi @ 12.7GHz
  • Dimensions (W x H x D): 518 x 569 x 270mm
  • Weight: 19.6 kg
  • Power supply 12-24VDC
  • Power consumption during searching: 84W

Pre-programmed satellites: Turksat, Astra 2, Astra 3, Astra 1, Hotbird, Eutelsat 9A, Astra 4, Thor, AtlanticBird 3, Hispasat.


Advantages of using QuickSAT QSA85F

 Fully Automatic

Fully motorised dish automatically moves in the correct position at the press of a button.

 Very large coverage area

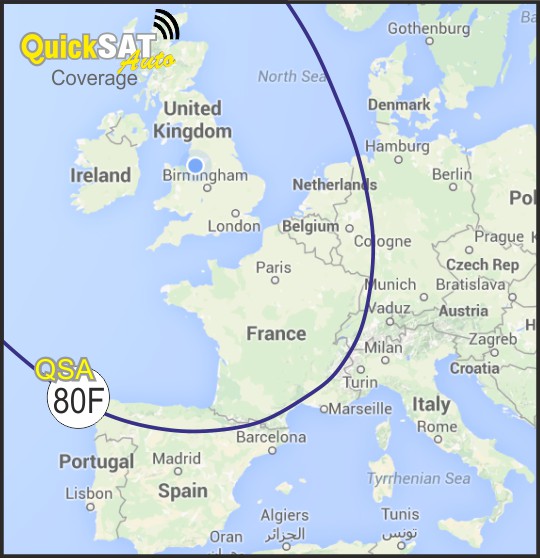

The equivalent performance of an 80cm dish allows reception of UK TV over throughout the UK and Ireland, France and into northern Spain.

 Works with any TV

Can be used with any TV with an integrated satellite receiver, your own receiver (including SKY) or the optional 12V “QuickSAT free to air receiver”.

 The easiest setup

Simply press a button to select the satellite and the dish automatically moves into position

Additional Information


12 Months
