QuickSAT is the perfect solution to enjoy satellite TV wherever you go!

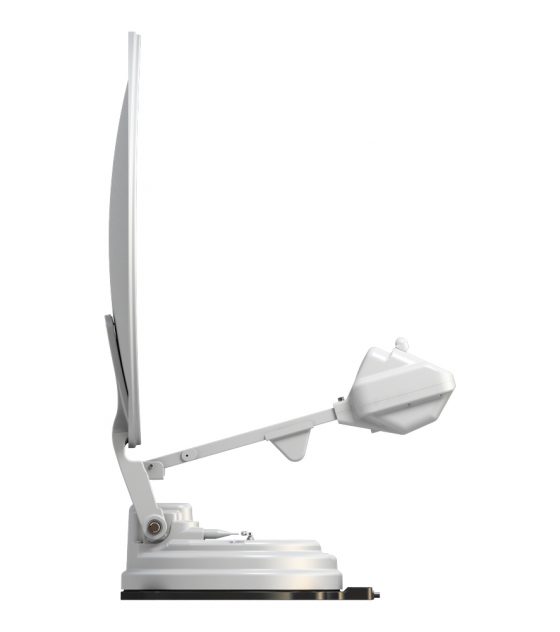

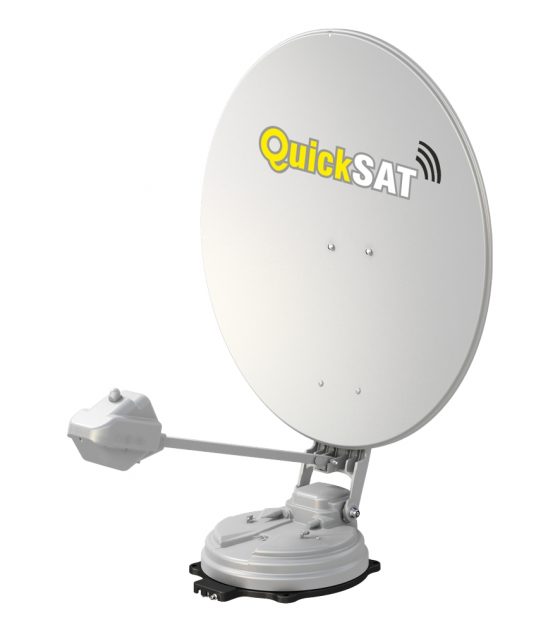

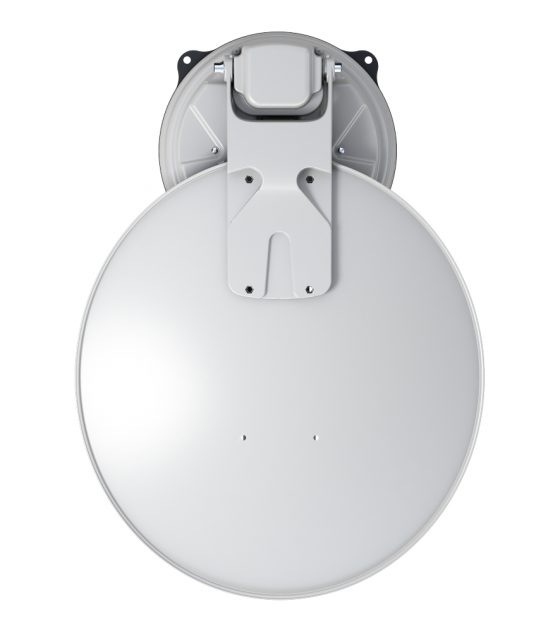

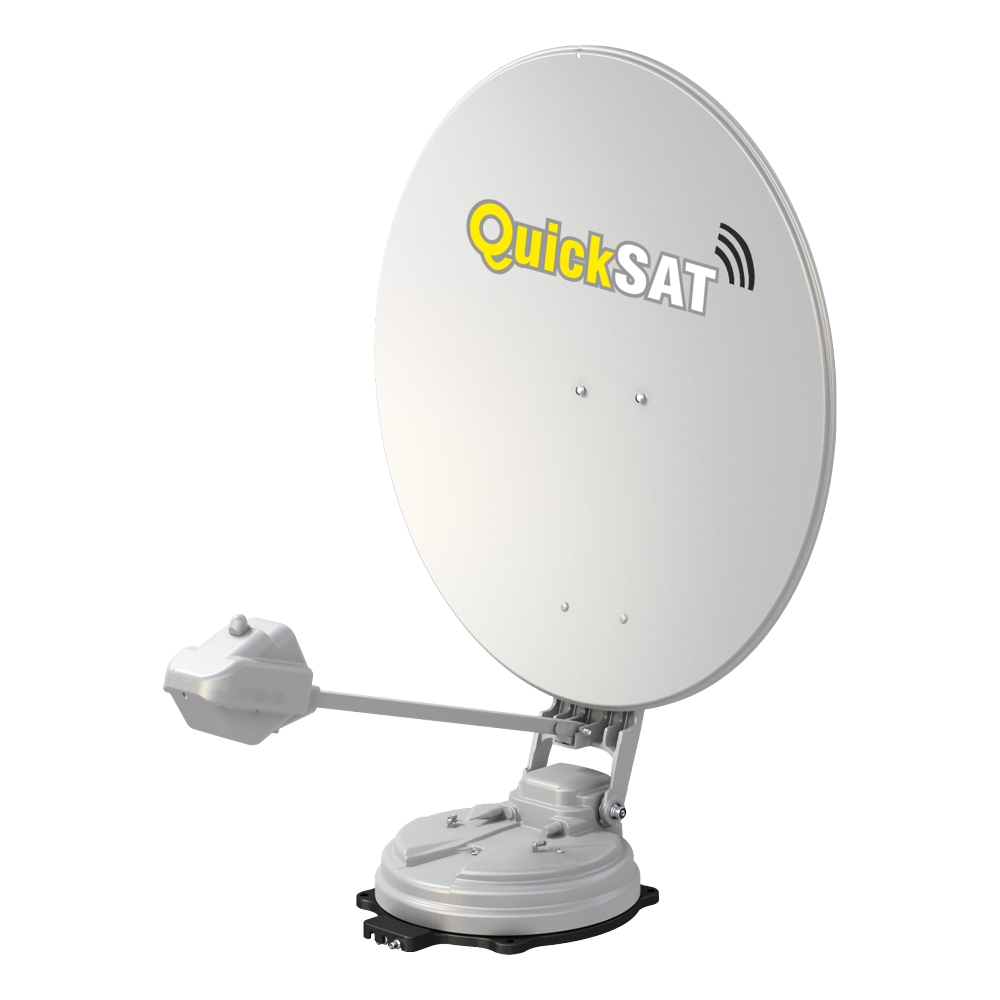

The QSA65 satellite dish is a fully automated solution for digital satellite TV in your motorhome or caravan. It will work with any TV with an integrated satellite receiver or any free-to-air or Sky receiver and comes pre-programmed for Astra 28 for UK TV plus 7 other popular European satellites. Simply press a button to select the satellite and the dish automatically moves into position.

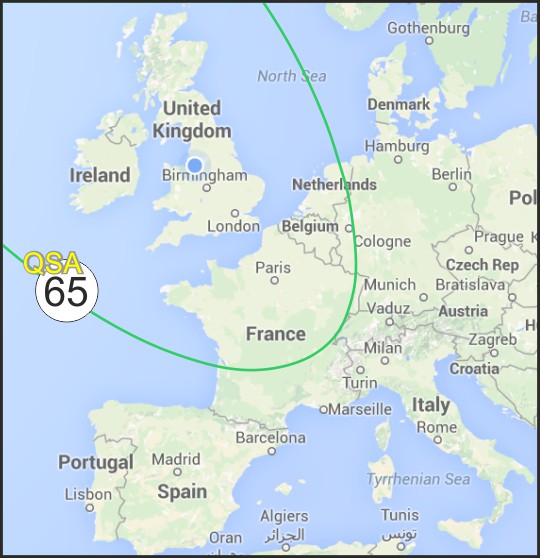

The 65cm dish will receive UK TV channels all over England, Scotland, Wales & Ireland and most of France.
Available with one or two LNB outputs.

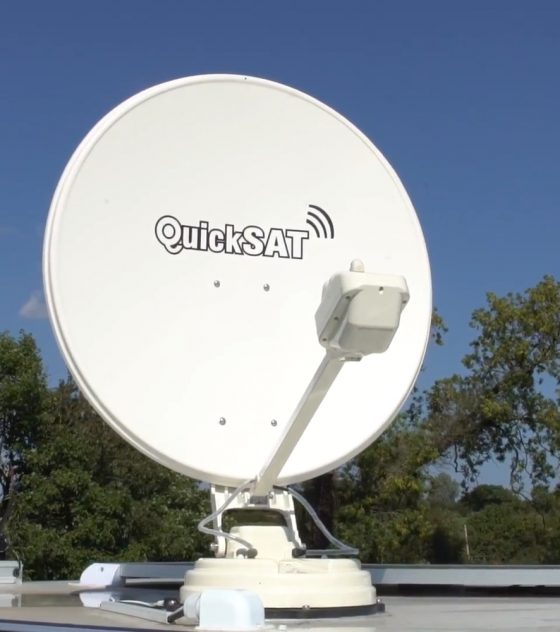

- Roof mounted fully automatic dish
- Simply press a button to select the satellite and the dish automatically moves into position
- Programmed to find Astra 28 for UK TV plus 7 other popular European satellites
- Works with any satellite receiver built in to a TV or separate receiver
- Power consumption is virtually zero in standby mode preserving leisure batteries
- Auto satellite switching by DiSEqC 1.1
- Supports DVB-S/S2
- Below 180 sec to lock a target satellite

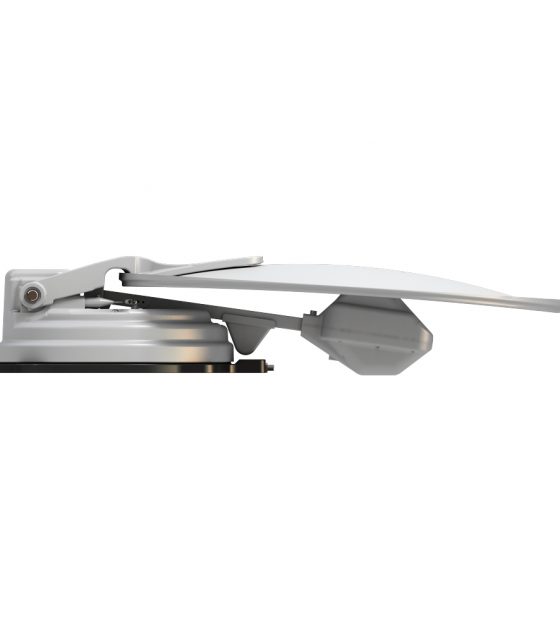

- Low profile of 18cm height when folded
- Aluminium dish, strong, lightweight and more protection against rust than steel
- Solid mechanics with aluminium die cast gear housing for more accurate pointing
- High gear ratio for powerful operation
- Dish is firmly locked during travel
- Reinforced plastic housing provides lightness and high durability
- Well-designed drainage system
- Input Satellite Frequency: 10.7 ~ 12.75 GHz
- Polarisation: Vertical & Horizontal
- Dish Size: 65cm
- Dimensions: 885 x 660 x 184 mm Folded (L x W x H)
- Weight: 12.0 kg
- Min EIRP: 46 dBW
- Angle Range: 0° ~ 145° / 390° (EL / AZ)
- Satellite Searching Time: 180 seconds (Average)
- LNB Outputs: 1 or 2 (optional)
- LNB Output Frequency: 950 ~ 2,150 MHz
- LNB L.O. Frequency: 9.75 / 10.6 GHz
- Operating Temperature: -20°C ~ +60°C
- Input voltage: DC 12V
- Power Consumption: 50 W (during searching)
Advantages of using QuickSAT QSA65
Fully motorised dish automatically moves in the correct position at the press of a button.
Large coverage area
The 65cm dish and high sensitivity LNB allows reception of UK TV over throughout the UK and Ireland and most of France.
Works with any TV
Can be used with any TV with an integrated satellite receiver, your own receiver (including SKY) or the optional 12V “QuickSAT free to air receiver”.
The easiest setup
Simply press a button to select the satellite and the dish automatically moves into position
