Touring Satellite system with fast Dish alignment

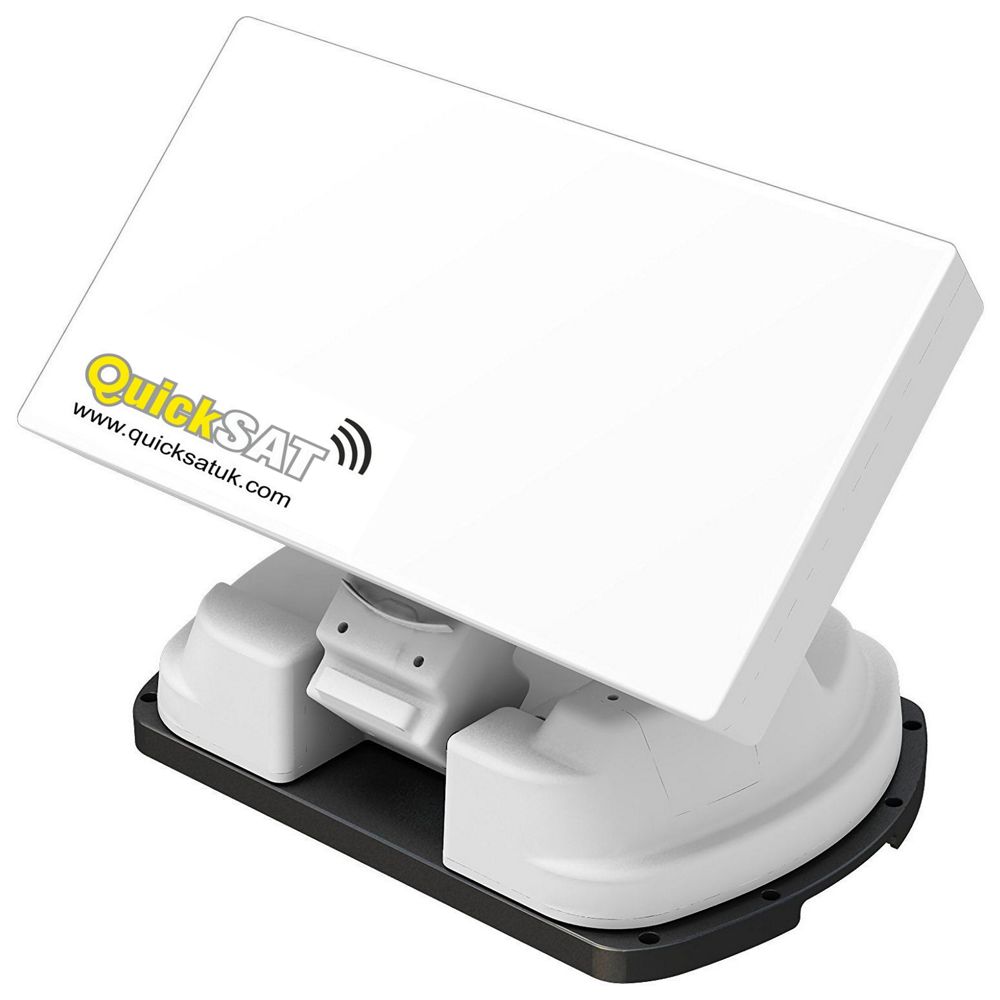

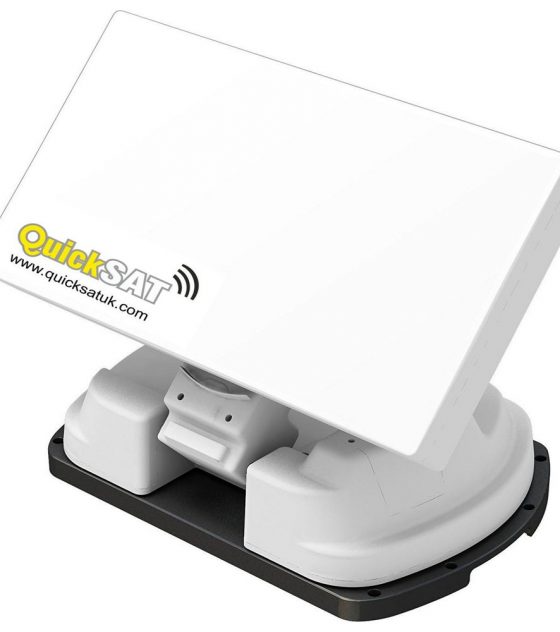

The QuickSAT QSA65F is a compact fully automatic satellite antenna, just press a button and the flat panel will rise into position and automatically lock onto the satellite very quickly thanks to the built in GPS receiver. The very small footprint makes it deal for mounting on the roof of motorhomes or caravans where space is limited.
Available with one or two LNB outputs.
- Automatic alignment of your chosen satellite at the press of a button
- Completely automatic adjustment of elevation, azimuth and skew
- Perfect alignment and fast searching using built in GPS receiver
- Buttons for 10 pre-programmed satellites plus 2 user defined satellites.
- Reception performance comparable to a conventional 65cm dish
- Very low profile when closed
- Ideal for motorhomes or caravans with limited room on the roof
- Lightweight and rustproof due to reinforced plastic construction
- Die-cast aluminum gearbox with locking mechanism to prevent damage while travelling
- Waterproof construction with drainage system
- Support for DiSEqC 1.0 / 1.1
- Dimensions (W x H x D): 516 x 356 x 204 mm
- Weight: 10.5 kg
- Power consumption during searching: 30W
Pre-programmed satellites: Turksat, Astra 2, Astra 3, Astra 1, Hotbird, Eutelsat 9, Astra 4, Thor, Eutelsat 5W, Hispasat
Advantages of using QuickSAT QSA65F
Fully motorised dish automatically moves in the correct position at the press of a button.
Low profile, compact unit
Equivalent to a 65cm dish, allows reception of UK TV over throughout the UK and Ireland and northern France.
Works with any TV
Can be used with any TV with an integrated satellite receiver, your own receiver (including SKY) or the optional 12V “QuickSAT free to air receiver”.
The easiest setup
Simply press a button to select the satellite and the dish automatically moves into position
